MN-CC03 Electric Curved Stair Lift Chair for Elderly & Mobility-Impaired Users

Key Features

160 kg Max. Load Capacity
Suitable for stair angles up to 52°

350W Motor
Rack-and-pinion drive with self-locking gearbox

Automatic Charging
Charging points at both ends of the rail

Foldable Design
Foldable seat, armrests and footplate

Customized Rail
Rail length customized according to staircase configuration

Technical Specifications

Item	Specification
Product Name	Curved Stairlift Wheelchair
Model	MN-CC03
Control Mode	Embedded Chip
Motor	350W DC Brushed Motor
Gearbox	Self-Locking Gearbox
Drive System	Gear & Rack
Rated Speed	Approx. 7.2 m/min
Rail Angle	0–52°
Maximum Load	160 kg at ≤35° / 120 kg at ≤52°
Brake	Electromagnetic Brake
Working Voltage	24V
Battery	2 × 12V 12Ah Lead-Acid Batteries
Charging Voltage	100–240V / 1.2A
Charging	Automatic Charging at Both Ends of Rail
Power Consumption	Approx. 2–5 kWh/month
Noise Level	40–50 dB(A)
Display	2.8-inch LCD Display
Seat Width	410 mm
Seat Depth	390 mm
Seat Height	480 mm
Folded Width	390 mm
Footplate	290 × 330 mm
Rail Material	High-Strength Alloy Steel
Rack Material	High-Strength Alloy Steel
Rail Finish	Electrostatic Spray Coating
Rail Fixing	Floor-mounted with Screws
Rail Length	Customized according to Staircase
Seat & Armrests	Foldable
Footplate	Foldable

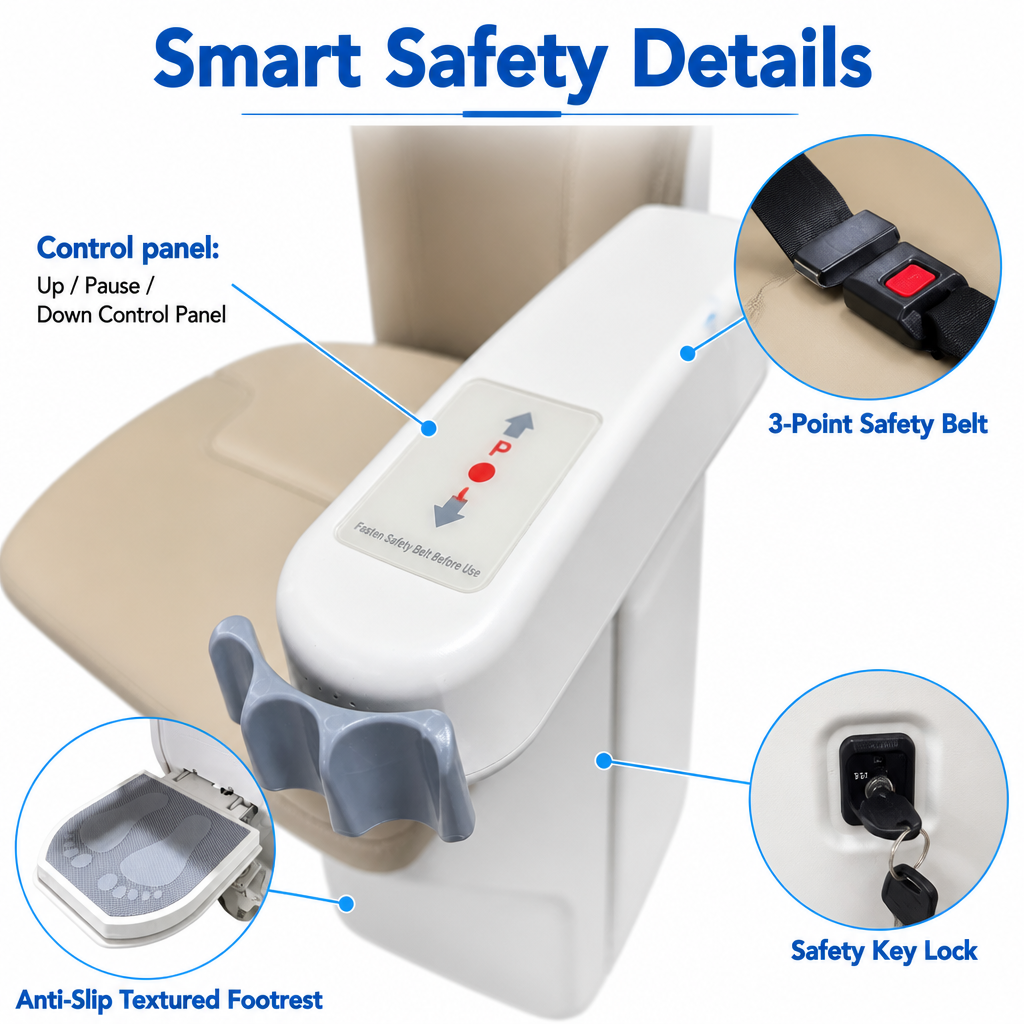

Seat Belt	Electronic Locking
Seat Rotation	Manual

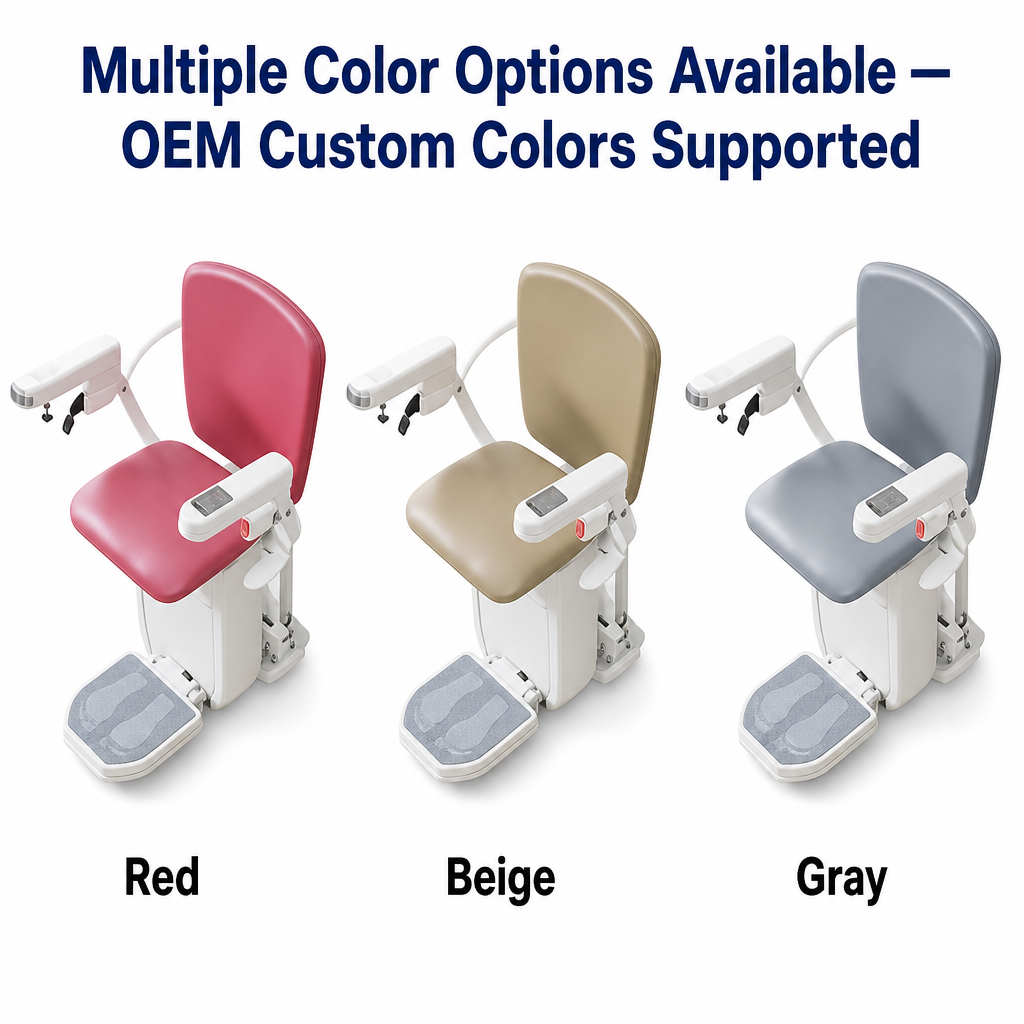

Colors	Red / Grey / Beige
Display Language	Chinese / English / French / Spanish / Korean
Designed Service Life	30 Years

Applications

• Private homes
• Elderly care
• Nursing homes
• Rehabilitation centers
• Accessibility projects
