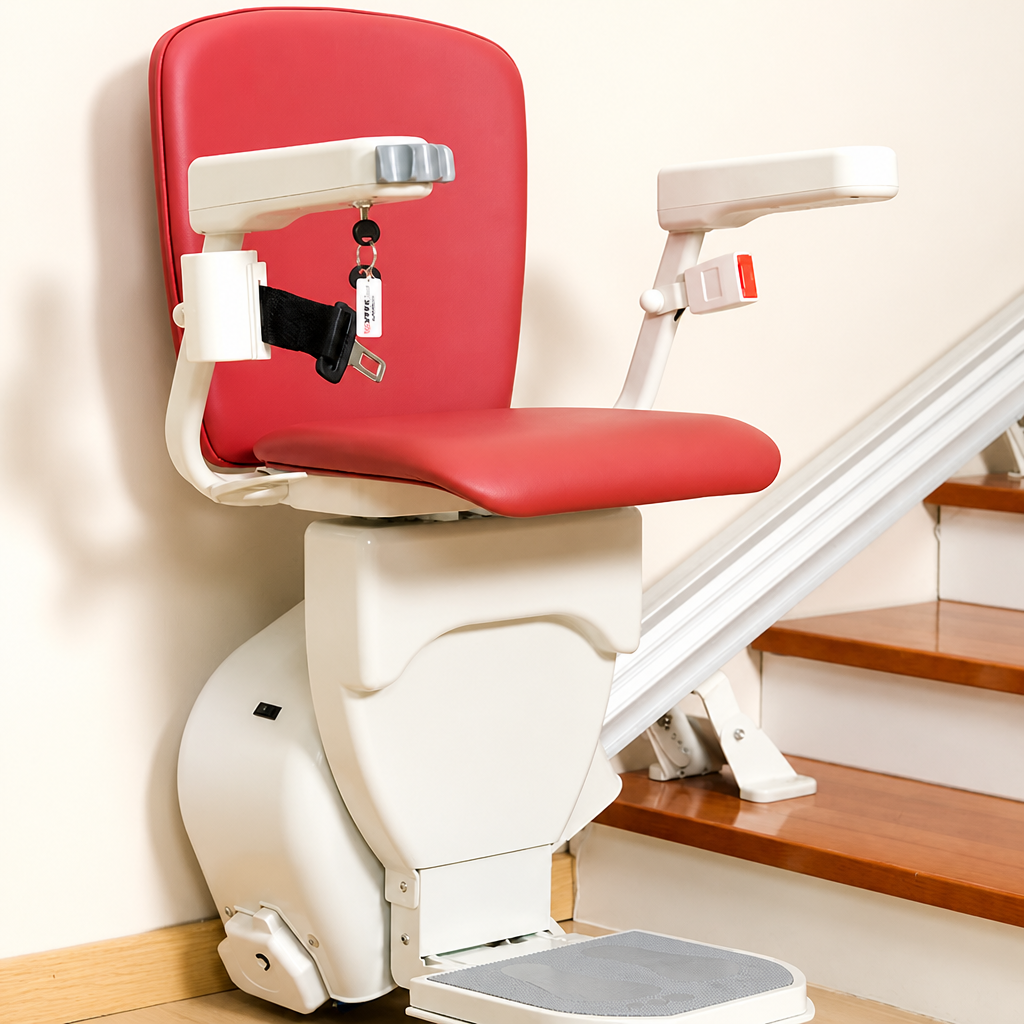

MN-SC01 Straight Stairlift Chair – Automatic Folding Stair Lift for Home Stairs

This automatic straight stairlift is designed to provide safe and convenient mobility assistance on straight staircases in homes, residential buildings and other indoor environments. The foldable seat, armrests and footplate help save space when the stairlift is not in use.

Key Features

1. Suitable for 25°–55° Straight Stairs
2.  Foldable Space-Saving Design
3.  Automatic Charging
4.  350W Self-Locking Motor
5. 2.8-Inch Display
6. Aluminum Alloy Rail

Product Type    Straight Stairlift Chair
Model    SC01MS02MB01MF03
Control System    Embedded Control Chip
Motor    350W DC Brush Motor with Self-Locking Gearbox
Drive System    Gear & Rack
Rated Speed    Approx. 7.2 m/min
Laboratory Noise    40–50 dB(A)
Working Voltage    24V
Working Current    0–18A
Battery    2 × 12V 9Ah Lead-Acid Batteries
Charging Input    100–240V / 1.2A
Charging    Automatic Charging at Both Ends of the Rail
Display    2.8-inch Display with Operating Status & Fault Codes
Seat Rotation    Manual Rotation
Seat & Armrests    Foldable
Footplate    FO3 Folding Footplate
Seat Cushion    410 × 390 mm
Folded Width    Approx. 350 mm
Unfolded Width    Approx. 640 mm
Rail Material    High-Strength Aluminum Alloy
Rail Finish    Silver, Matt Anodized
Rail Fixing    Floor Fixed with Screws
Stair Angle    25°–55°
Maximum Load    140 kg at ≤35° / 120 kg at ≤55°
Rail Drive    Gear & Rack with Grease Lubrication
